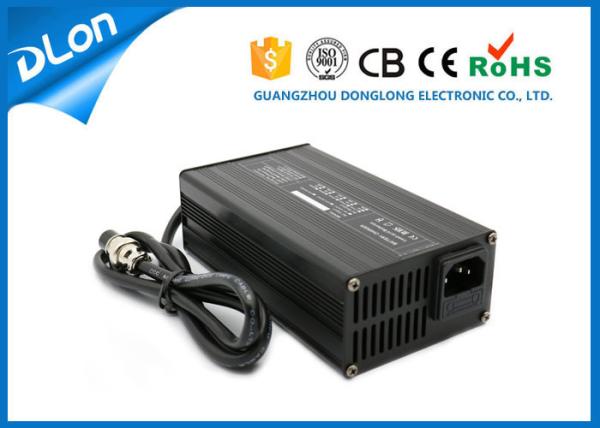

    36v 48v e-bike lithium battery charger 20ah 23AH for electric three wheel bike/electric mountain bike 42.0/54.6V output

    Ask Lasest Price
    Brand Name : DLON
    Model Number : DL180-36V
    Certification : CE, RoHS
    Price : $21.0 ~ $26.00
    Supply Ability : 10000 pcs per month
    • Product Details
    • Company Profile

    36v 48v e-bike lithium battery charger 20ah 23AH for electric three wheel bike/electric mountain bike 42.0/54.6V output

    36v 48v e-bike lithium battery charger 20ah 23AH for electric three wheel bike/electric mountain bike 42.0/54.6V output

    Brief description :
    36v 48v e bike lithium battery charger 20ah 23ah is suitable for electric three wheel bike/ electric mountain or other ev products, it is automatic smart intelligent charger, multi-products, Two led light, Easy to use and carry , durable and high efficiency . It is good choose for your electric bike or other ev products.

    Feature :
    1. Aluminium case , light weight
    2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ
    3. Max wattage : 180 W
    4. Charge mode : 3 stage ( CC CV float mode )
    5. Charging : High saturation and efficiency
    6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)
    7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

    The 180W battery charger specification :

    Nominal

    Output Voltage
    CVCCTransition / Cut-off CurrentNet WeightSize
    Lead AcidLi-ionLiFePO4ALead Acid (A)Li(A)(kg)(mm)
    DL180-12V14.7V16.8V14.6V8A1.60.41.0155*90*50
    DL180-24V29.4V29.4V29.2V5A1.00.25
    DL180-36V44.1V42.0V43.8V4A0.80.2
    DL180-48V58.8V54.6V58.4V3A0.60.15


    Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.



    Package & Delivery
    1. Package : one piece one neutral box , 12 pcs/ carton, can be customized
    2. Delivery : 5 to 7 working days , big order according to actual quantity
    3. Delivery port : Guangzhou port
    4. Payment term : T/T or Western Union
    5. Delivery way : by sea / by air / by express or as your requirement


    Charging Procedure :

    1. First output power charger wire ends are connected to the battery anode and cathode , the charge indicator turns green, the connection is correct, otherwise the charge in question, please check the actual situation.
    2. Then city power plug to socket , the indicator is red, charger will be into the charging state .
    3. When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% , keep charging for 1 to 2 hours before end of charge.
    4. When fully charged, disconnect the city power first, then disconnect the battery cable.






    For more information about 36v 48v e bike lithium charger or other items battery charger , don't hesitate to contact me !!
