    Wholesale 48v e-car lead acide battery charger with CE & ROHS approved

    Ask Lasest Price
    Brand Name : DLON
    Model Number : DL2000-48V
    Certification : CE, RoHS
    Price : $185 ~ $210
    Supply Ability : 10000 pcs per month
    • Product Details
    • Company Profile

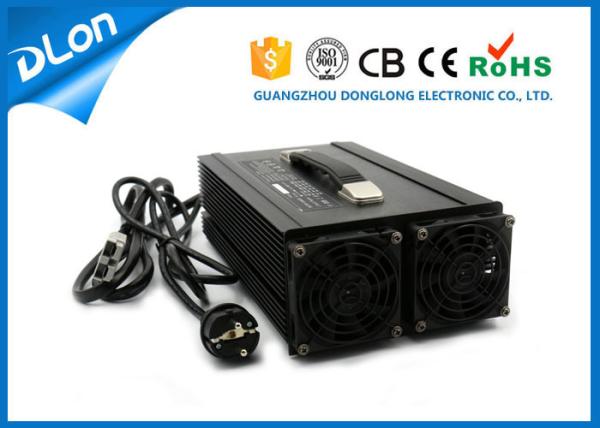

    Wholesale 48v e-car lead acide battery charger with CE & ROHS approved

    Wholesale 48v e-car lead acide battery charger with CE & ROHS approved


    Brief description :

    1. Aluminium case , light weight

    2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ

    3. Max wattage : 2000W

    4. Charge mode : 3 stage ( CC CV float mode )

    5. Charging : High saturation and efficiency

    6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

    7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc


    The 2000w battery charger specification :

    Nominal

    Output Voltage
    CVCCTransition / Cut-off CurrentNet WeightSize
    Lead AcidLi-ionLiFePO4ALead Acid (A)Li(A)(kg)(mm)
    DL2000W-12V14.7V16.8V14.6V120A20.05.06.5330*175*115
    DL2000W-24V29.4V29.4V29.2V60A12.03.0
    DL2000W-36V44.1V42.0V43.8V40A8.02.0
    DL2000W-48V58.8V54.6V58.4V30A6.01.5
    DL12000W-60V73.5V67.2V73.0V24A5.01.2
    DL2000W-144V176.4V176.4V175.2V10A2.00.5
    DL2000W-288V352.8V352.8V350.4V5A1.00.25


    Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.


    Charging Procedure :

    1. First output power charger wire ends are connected to the battery anode and cathode , the charge indicator turns green, the connection is correct, otherwise the charge in question, please check the actual situation.
    2. Then city power plug to socket , the indicator is red, charger will be into the charging state .
    3. When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% , keep charging for 1 to 2 hours before end of charge.
    4. When fully charged, disconnect the city power first, then disconnect the battery cable.


    Package & Delivery

    1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

    2. Delivery : 5 to 7 working days , big order according to actual quantity

    3. Delivery port : Guangzhou port

    4. Payment term : T/T or Western Union

    5. Delivery way : by sea / by air / by express or as your requirement
